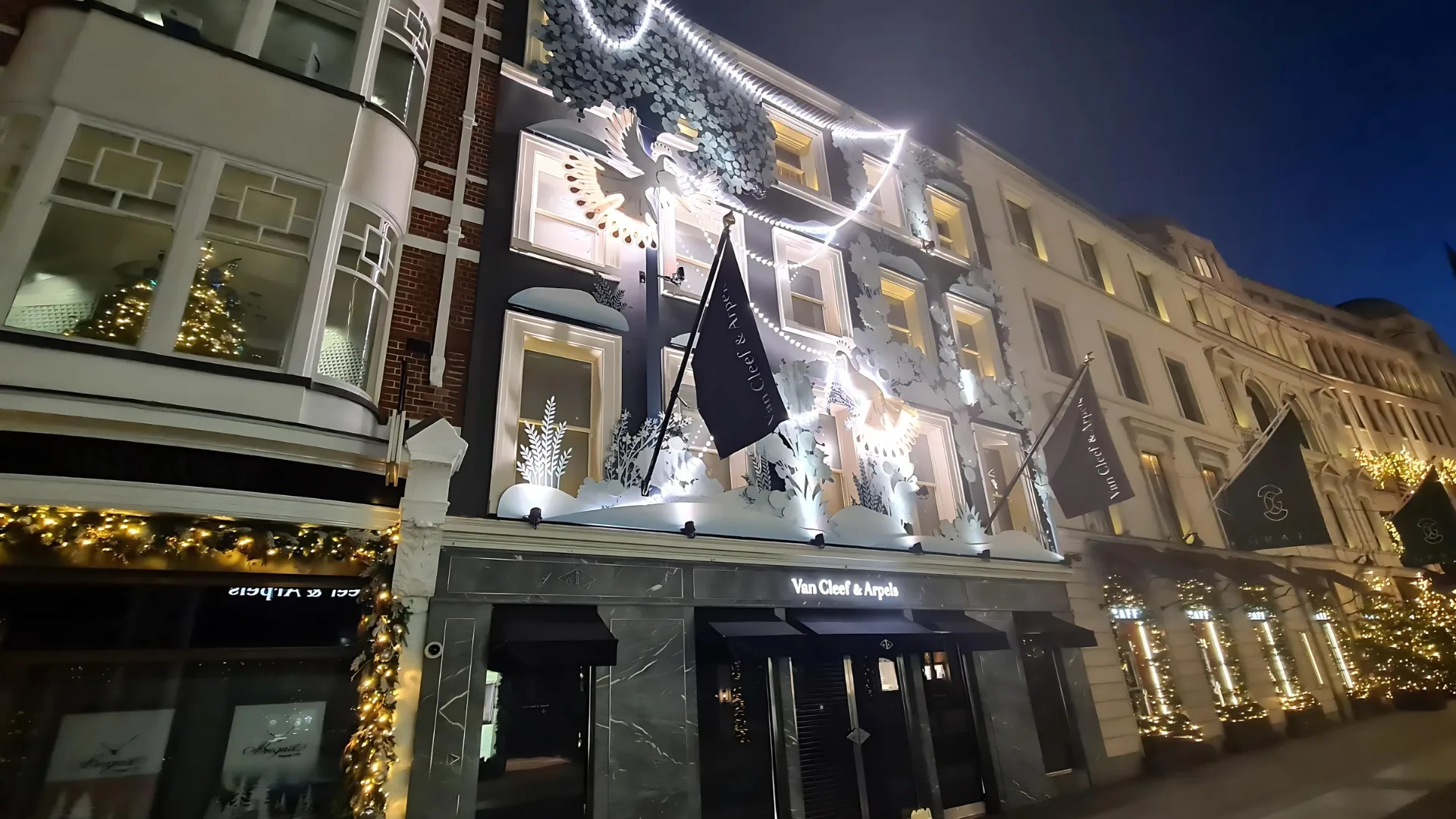

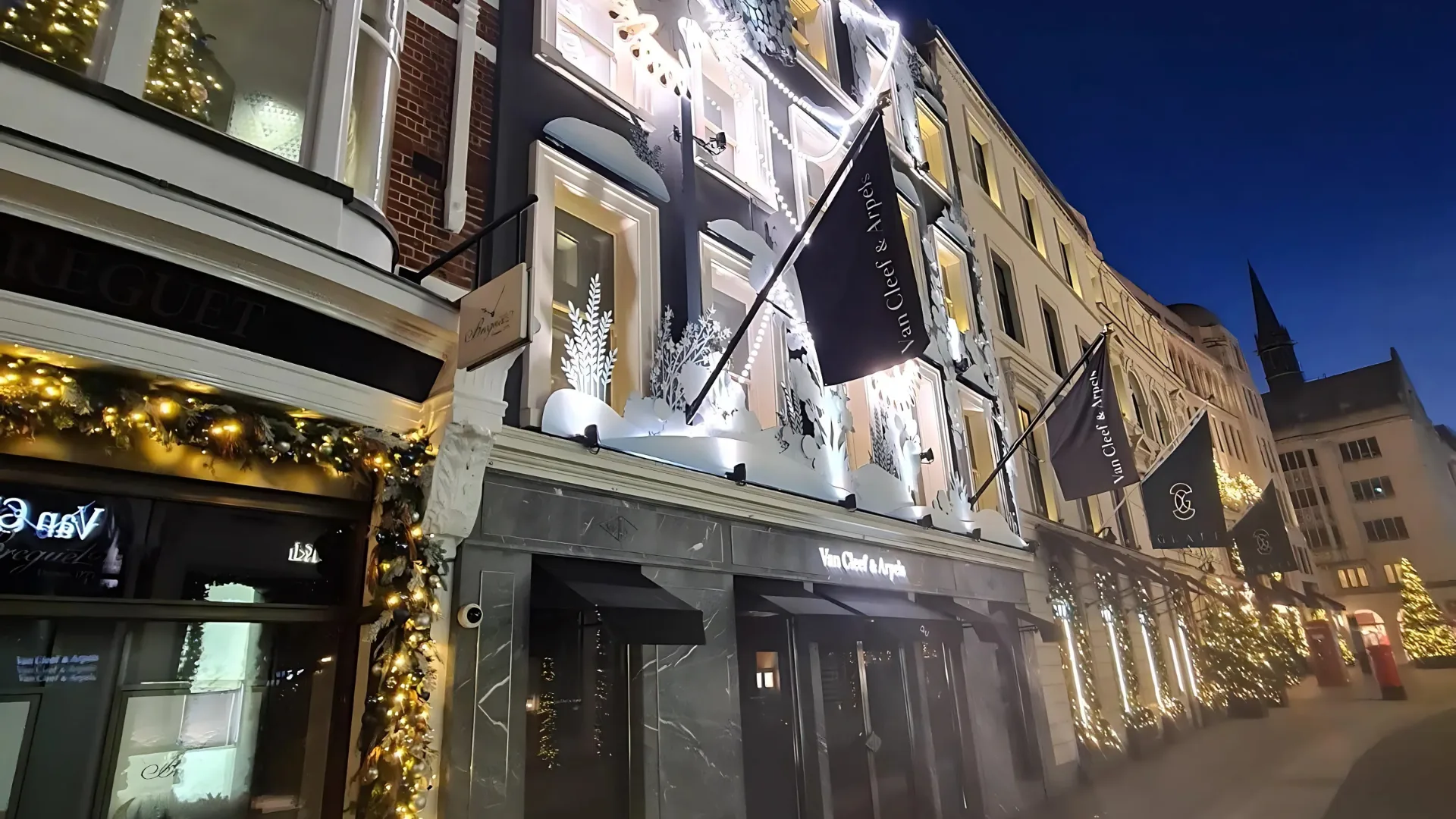

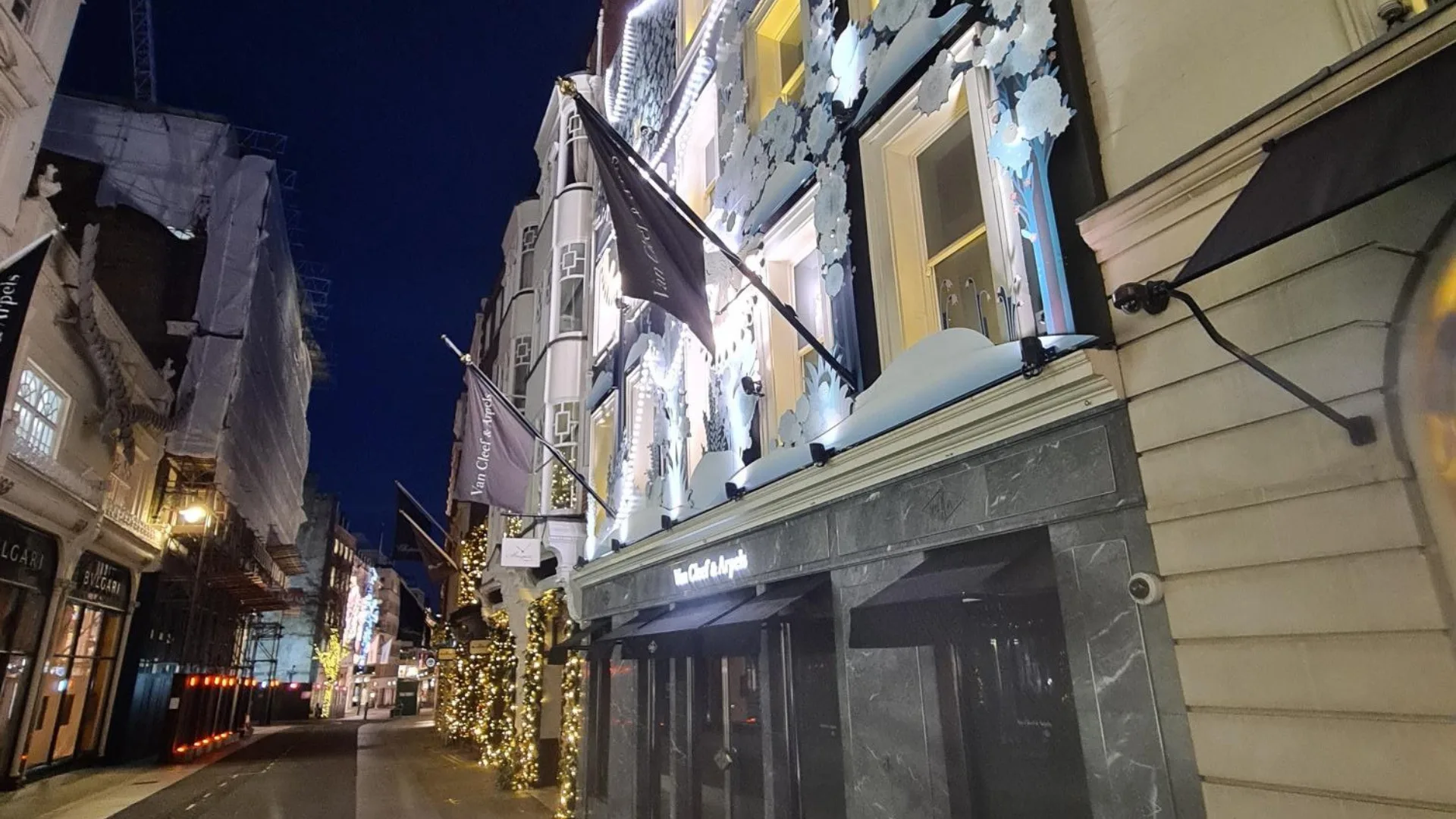

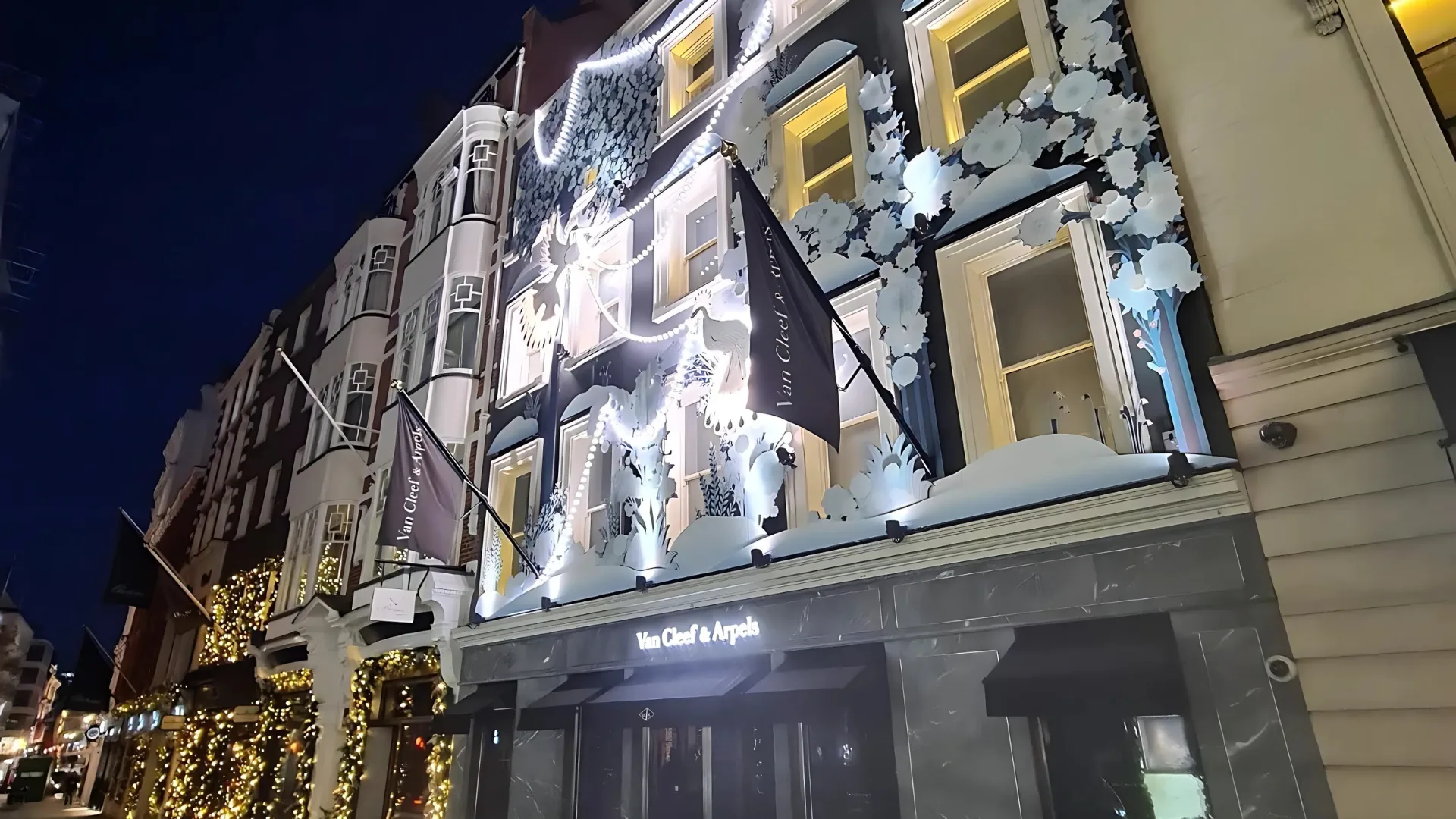

Christmas Decorations at Van Cleef & Arpels, London

MJ Consulting Engineers teamed with JMS Engineers to undertake the structural engineering design and validation for the installation of Christmas decorations on the façade of Van Cleef & Arpels. The project required detailed assessment of wind loads, load distribution, and anchor strength to ensure the safety and stability of the installation.

Engineering Techniques

The location’s specific environmental factors, including wind speed, building dimensions, and proximity to nearby structures, were analysed in detail. Advanced wind load assessments provided precise insights into the forces acting on the decorations, forming the basis of a safe and effective design.

The decorations, mounted on a lightweight aluminium box frame, were designed to withstand vertical and horizontal loads from their self-weight and external forces such as wind pressure. The load distribution was thoroughly analysed, and all assessments confirmed that the design complied with ultimate limit state requirements.

The anchors, fixed into the brick façade using high-performance mortar resin, were tested to stringent standards. The testing verified their ability to resist the calculated forces, with sufficient safety margins to accommodate all foreseeable conditions. Cantilever moments and tension forces were also reviewed to ensure full compliance with safety standards.

Material selection and structural verification processes ensured that the aluminium frame could handle all stress factors without compromising its integrity. The overall system, from anchor placement to load distribution, was designed for optimal performance and aesthetic integration.

Result

This project successfully demonstrated MJ Consulting Engineers’ ability to integrate detailed structural solutions with aesthetic requirements. The Christmas decorations were securely installed, meeting all safety and performance expectations while enhancing the festive appeal of the Van Cleef & Arpels façade. The outcome highlights the company’s expertise in delivering bespoke structural designs for unique and complex installations.
